Estradin Effekt 2 Phaser

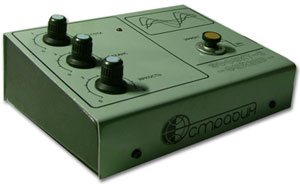

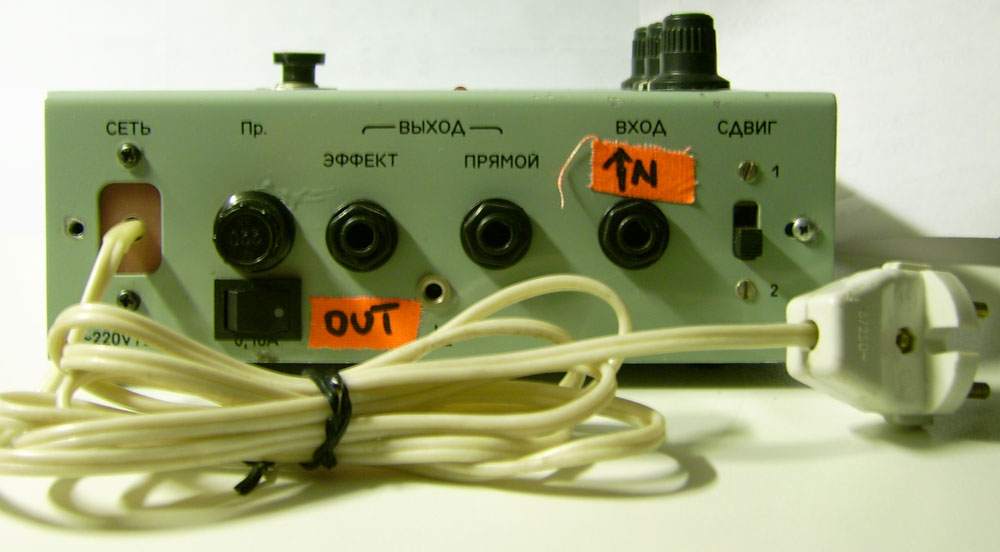

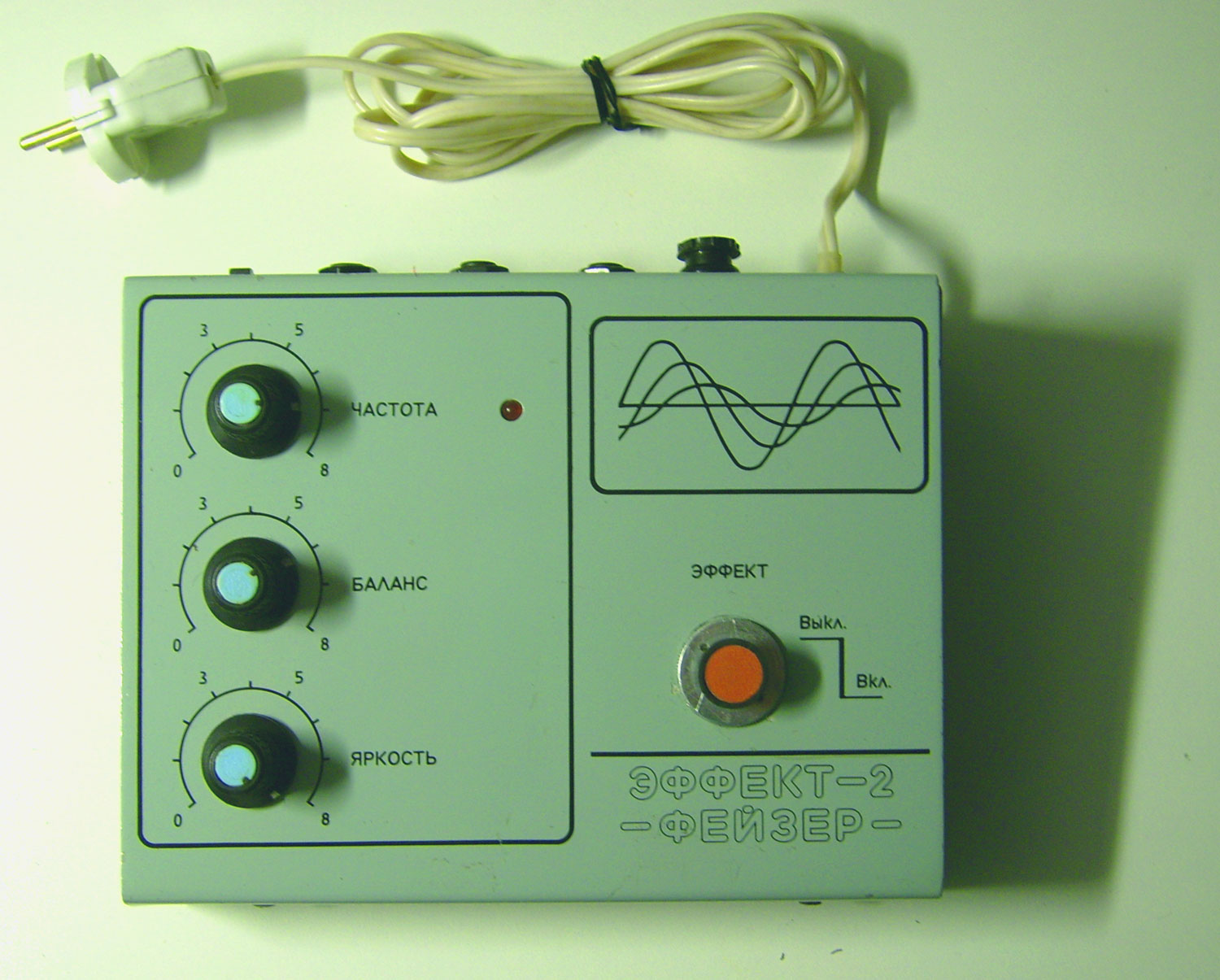

This is a soviet phaser made in the '89 by Estradin, Russia. It has 3 controls on top: freq, balance and brightness. Close to the freq pot there is a flashing LED synch to the rate/freq thanks to a lamp inside. On the right there is the ON/OFF switch. On the back from right to left there is an interesting switch to allow the phasing only for half circle (in the other half, the signal bypass the phase circle totaly), input, dry output and effected out put, fuse and power switch, further there is a ground output. The pedal has a 220V power cord built inside.

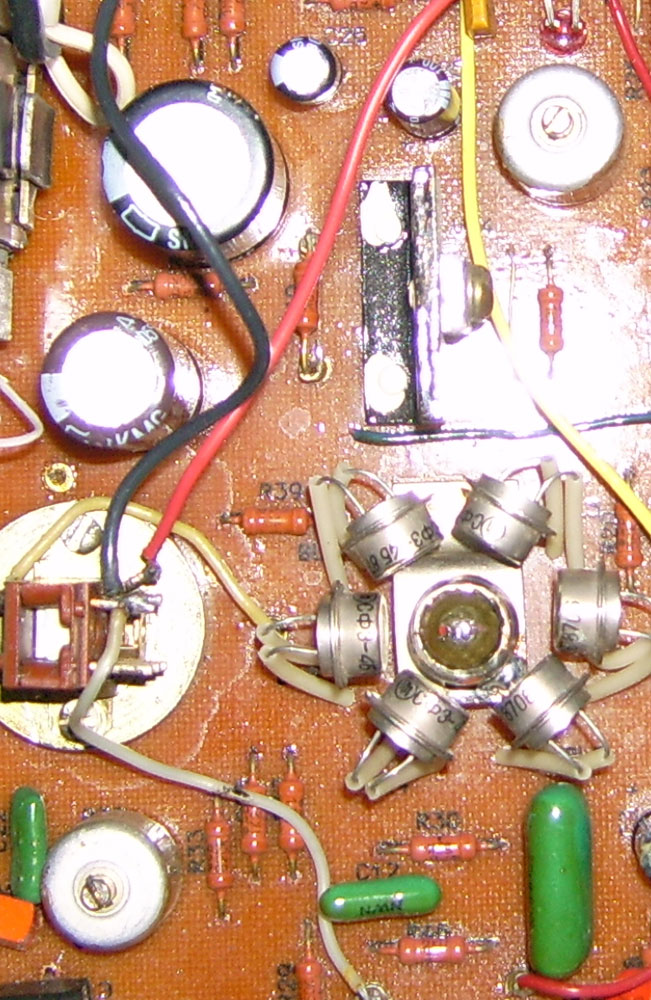

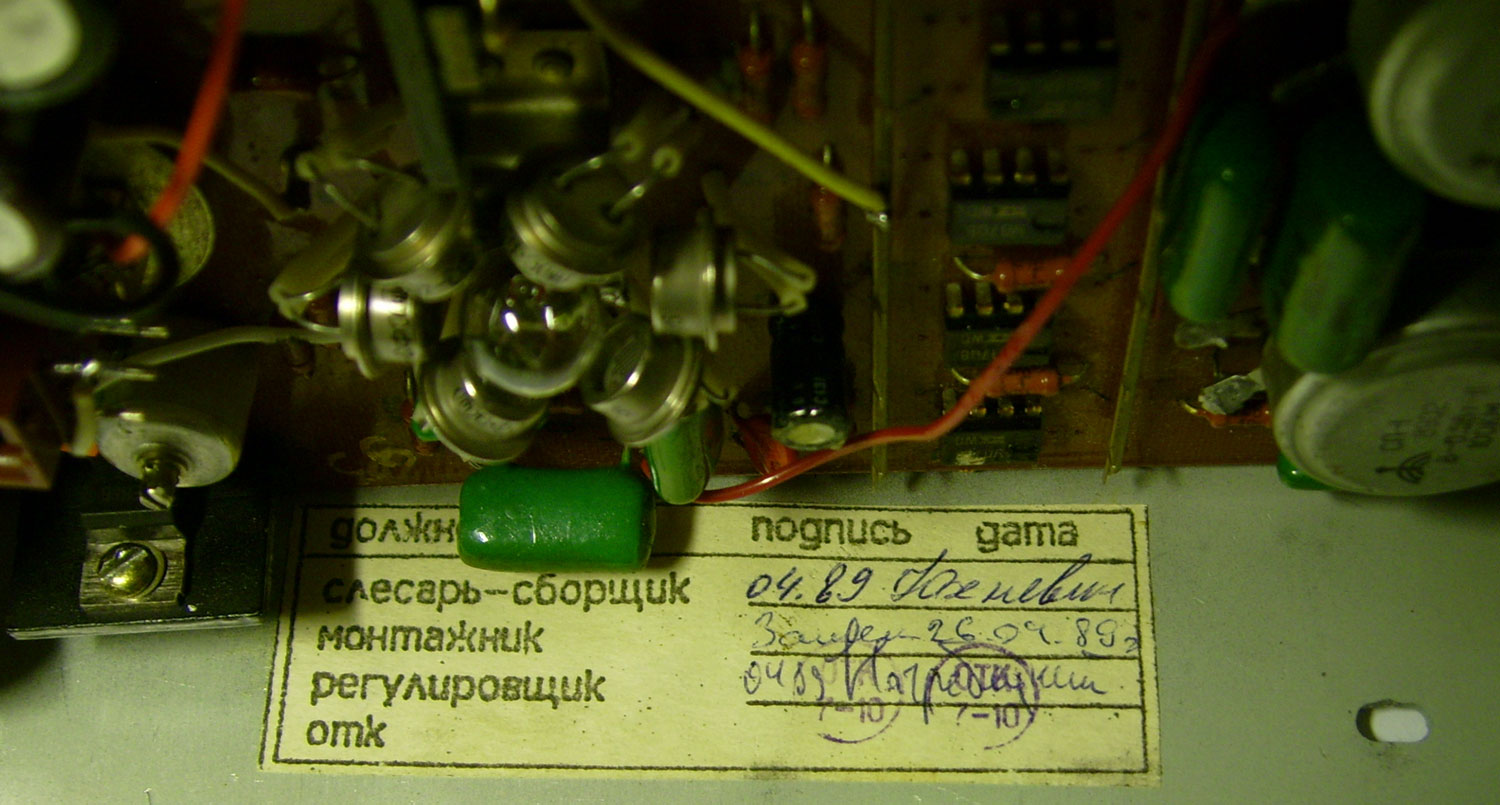

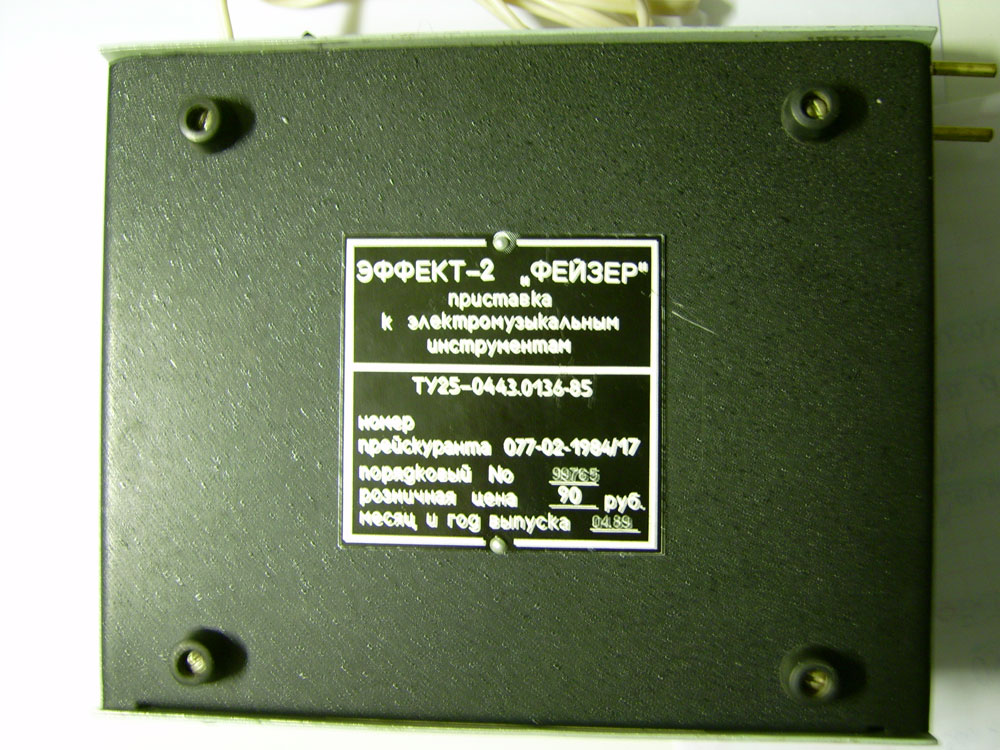

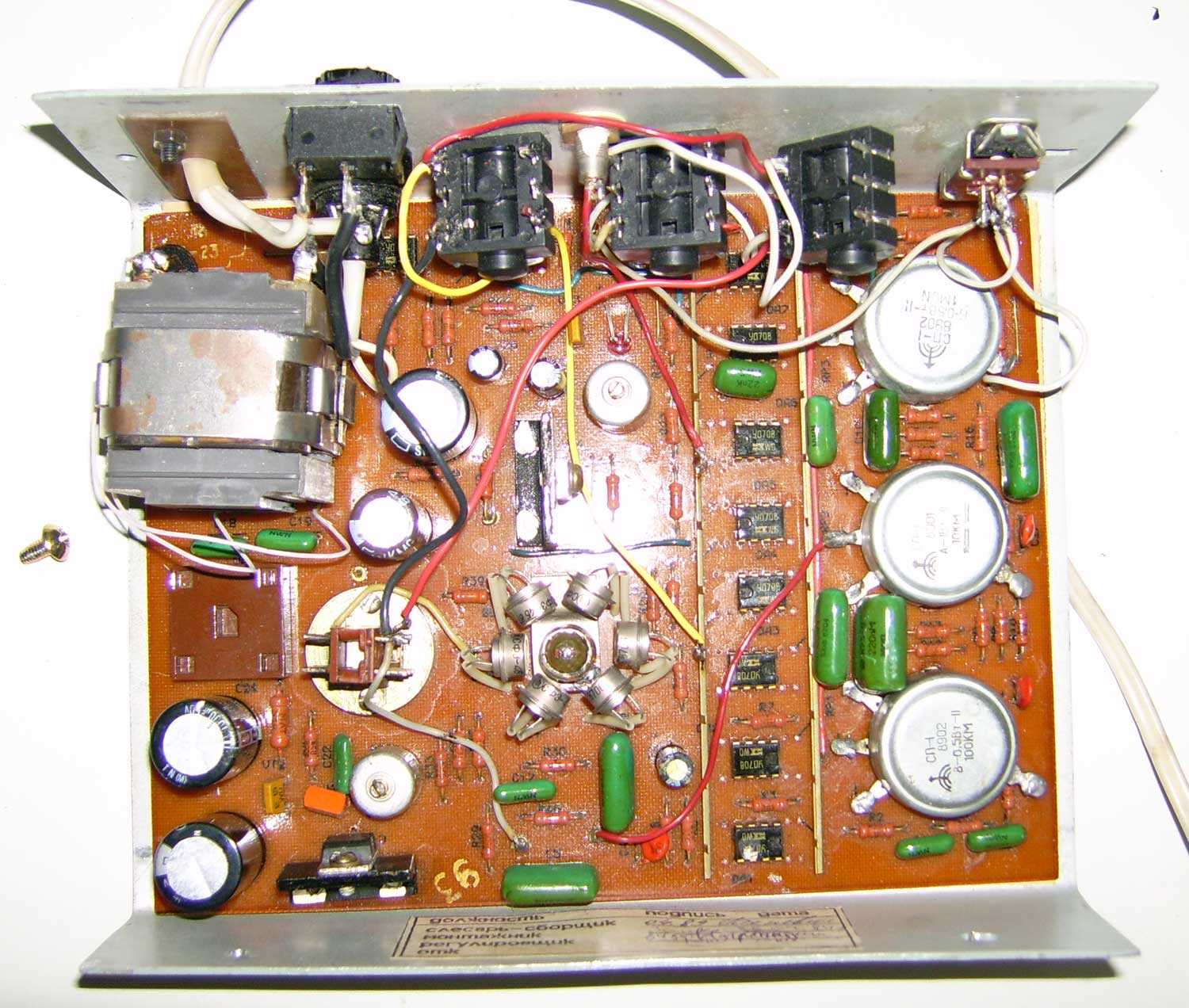

Pictures: Board - Front - Back - Rear - Tag - Trim and lamp
