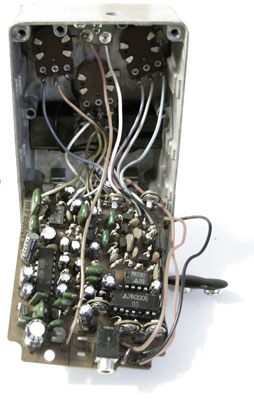

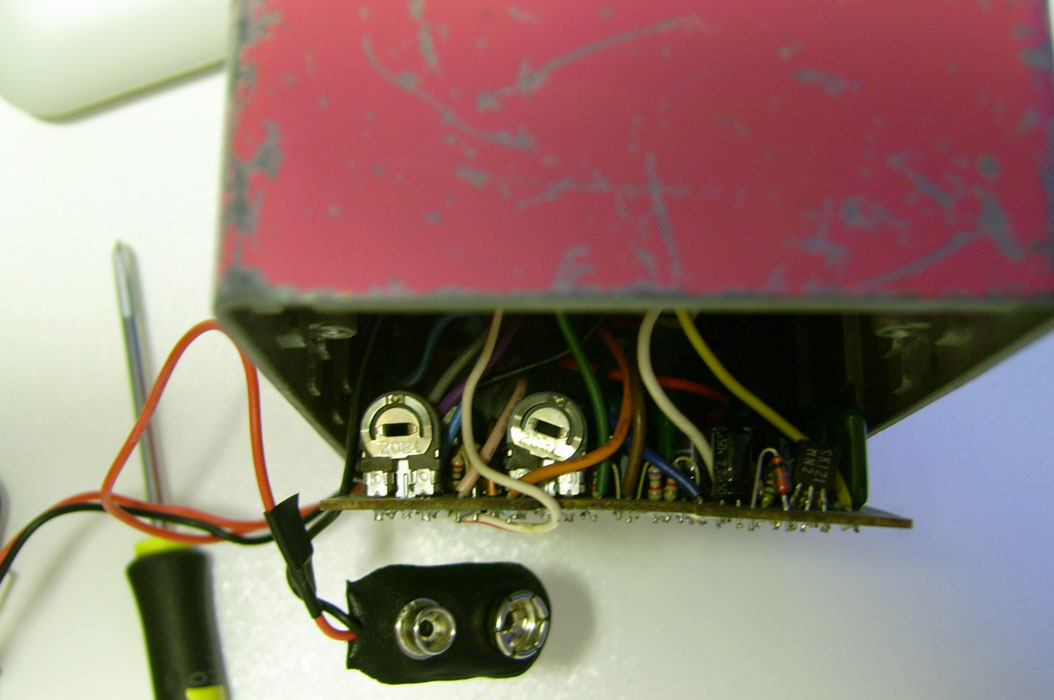

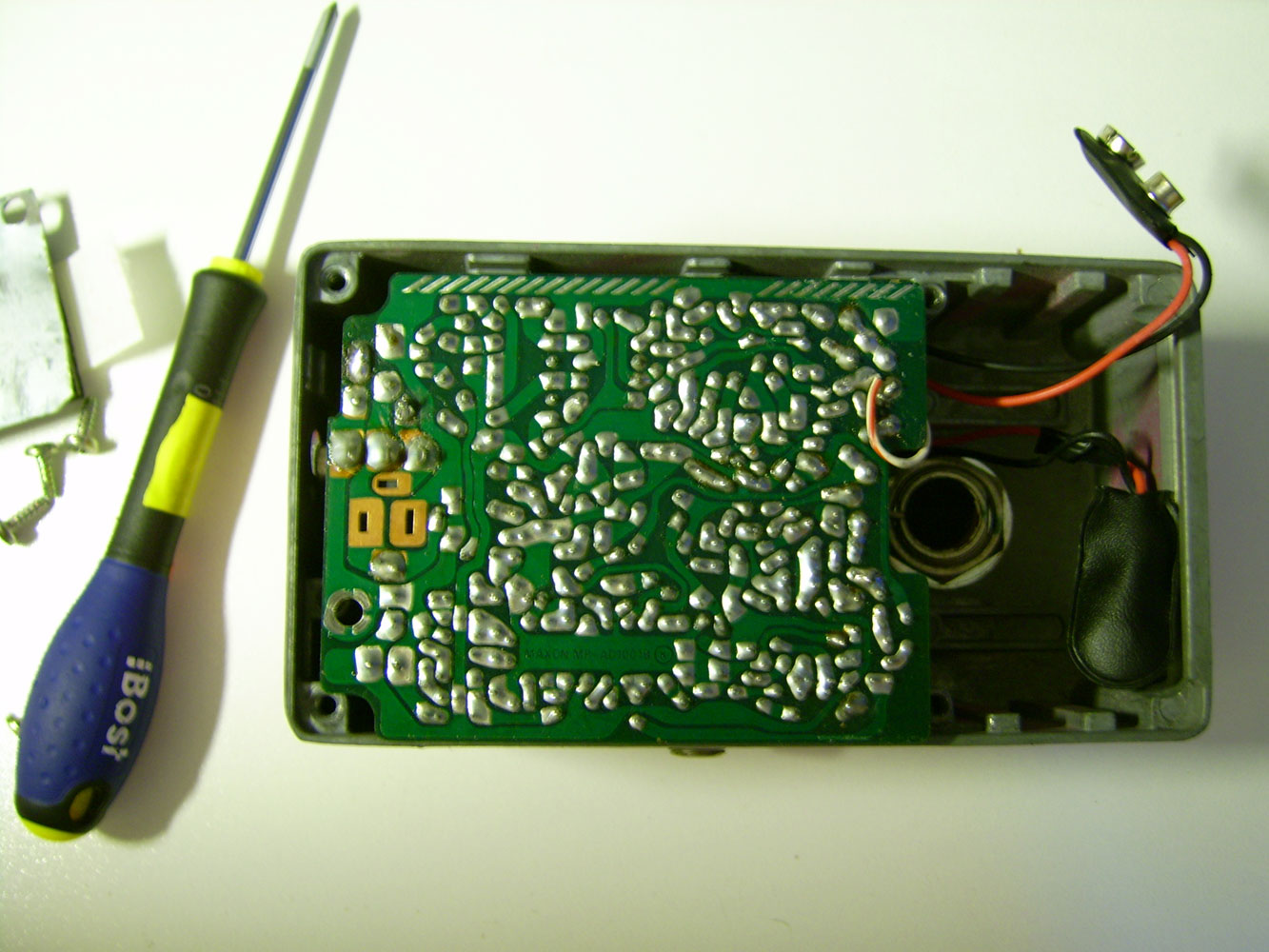

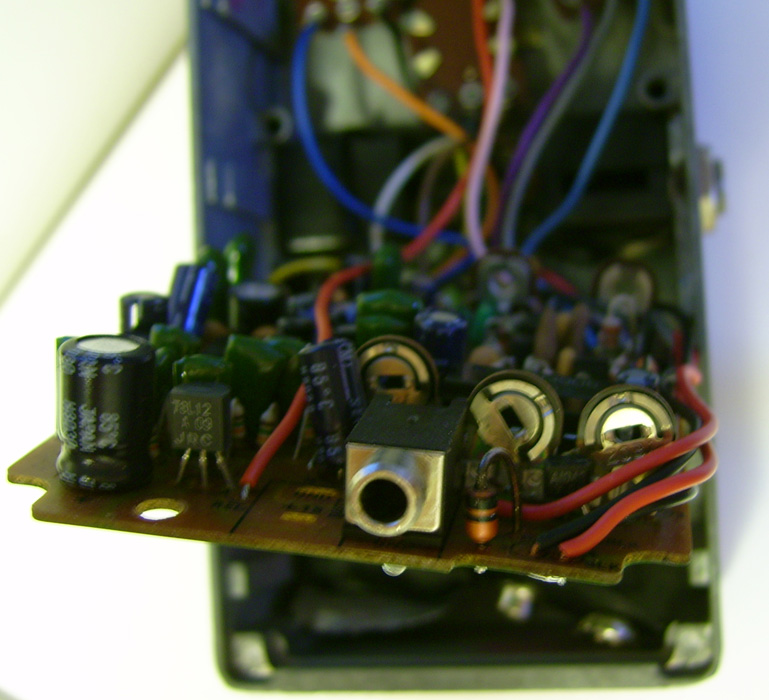

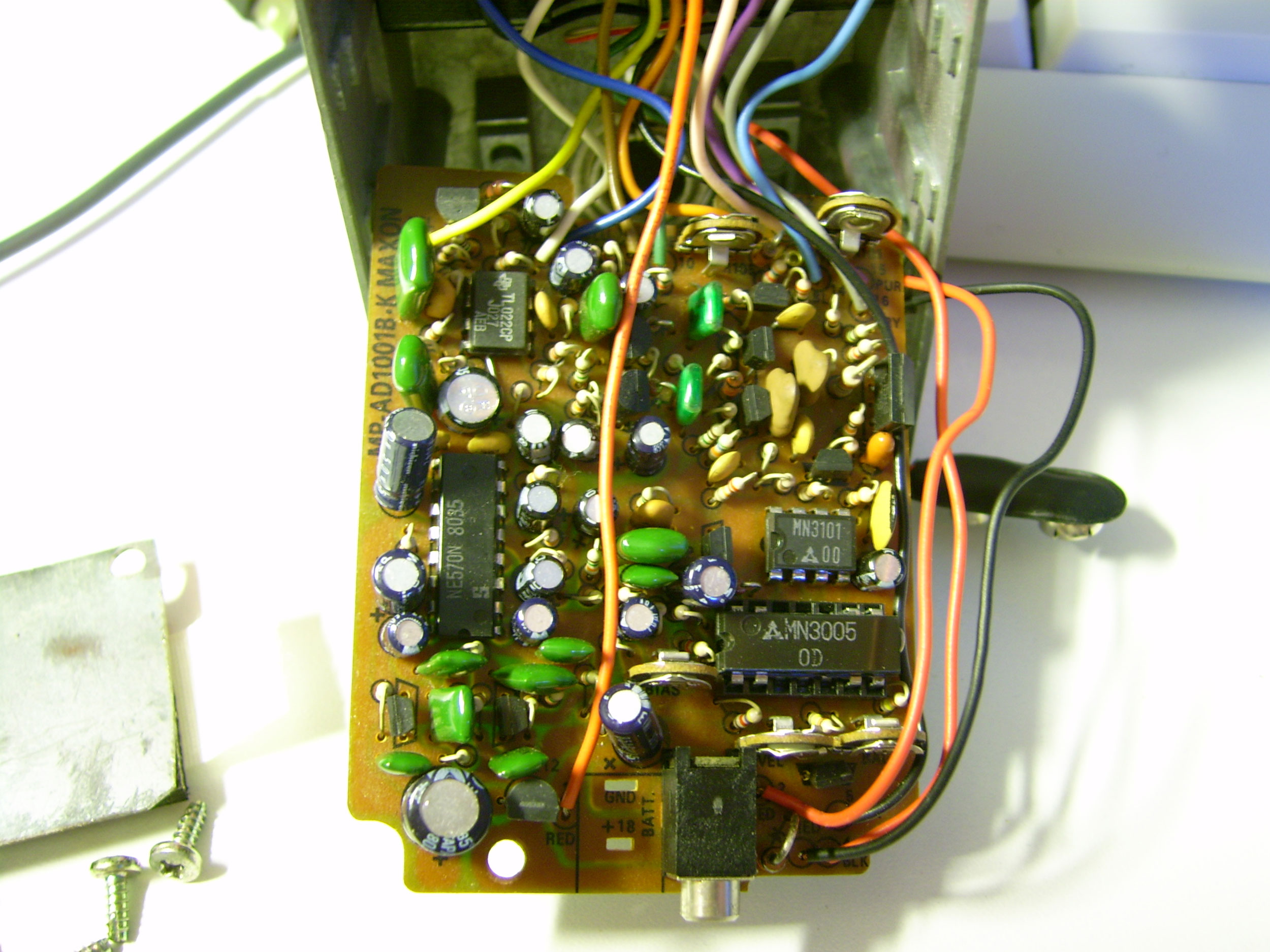

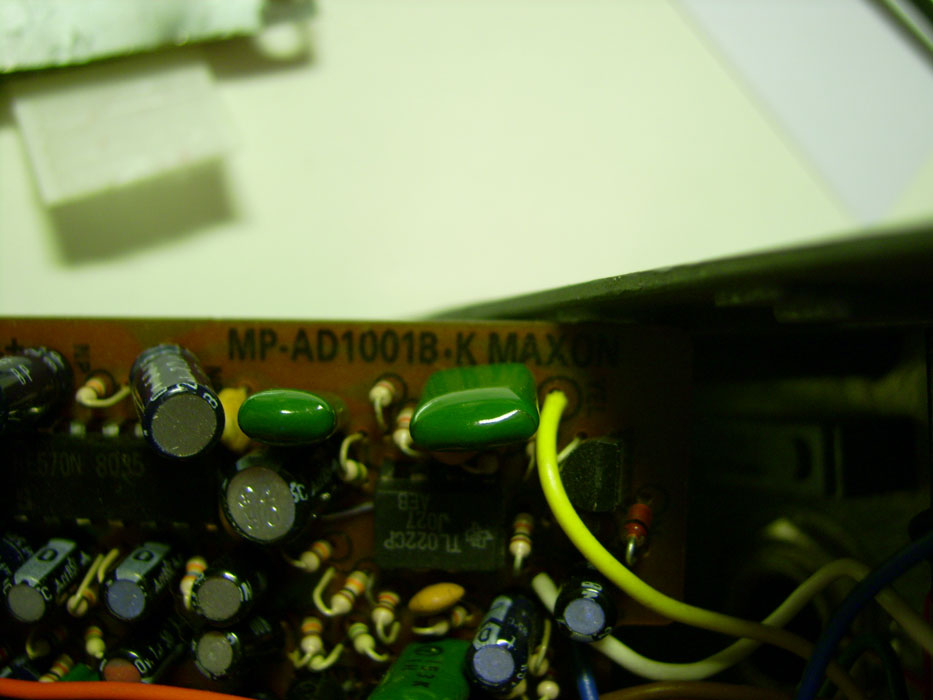

Ibanez AD-80 Analog Delay The famous '0' series , which gave us the Tube Screamer and the AD-80 was made from '79-'81 thanks to Mr. S. Tamura a senior engineer at Nisshin Onpa (Maxon). These pedals used electronic FET switching and had a solid square switch. The Maxon board inside the AD-80 had a Panasonic (Matsushita) MN3005, further it was designed for a +18 volts power cord that gives it an odd power! Pictures:Board - Back board - Board name - 3 Trim(Balance, Level, Clock) - 2 Trim added to AD1001B - Schematic AD1001A Links: www.ibanez.com - www.maxonfx.com
|
